SMP150 12V 10A 15V10A 18V8.33A 20V 7.5A 24V 6.25A

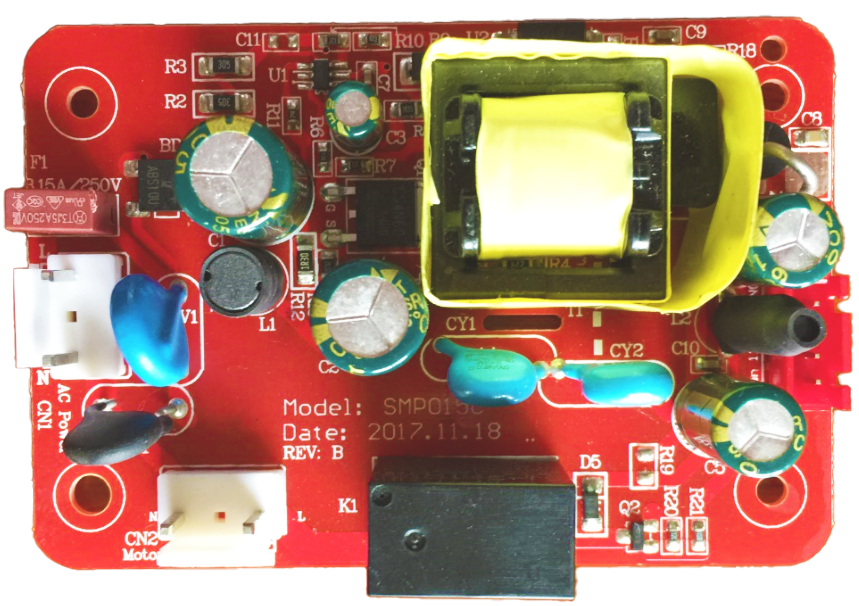

Product Name: SMP150 open frameApplication range: Home appliancesProduct Featur...
| Product Name: SMP018120150 |
| Application range: Household appliances |
| Product Features: |
| ? Universal AC Input / Full Range |
| ? Built-in Constant Voltage Circuit |
| ? Protections Mode: OVP, OCP, Overload / Short Circuit, OTP |
| ? Double Insulation, High Insulation Voltage Ensure Safety Usage. |
| ? High Efficiency and Low Noise Characteristics |
| ? 2 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | ||
| Input Voltage Range | 90-264Vac | Operating Temperature | -40℃~65℃ |
| Input Frequency | 50/60Hz | Storage Temperature | -40℃~ 70℃ |
| Turn on Delay(s) | <3 | Storage Humidity | 5~95% |
| Rated Output Voltage / Current | Output1: 12Vdc/1.5A Output2: 100--240Vac 3A | Cooling Mode | Natural Cooling |
| Output Voltage Tolerance | <±5% | MTBF | ≧100,000Hrs @25°C (Telcordia SR-332) |
| Dynamic Overshoot | <±5% | Surge Voltage | CM:±2kV, DM: ±2kV; |
| Ripple and Noise (Vpp) | <120mV | Insulation Voltage | 3KVac @ Primary v.s. Secondary |
| Efficiency (%) | >83% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc |
| Rise Time | <200mS | Safety Mark & Standards Complicance | EN60950, CB, CE, TUV, UL&cUL |
| Hold up Time | >10mS | EMC & EMI Standards Complicance | FCC Part 15 Class B; CISPR 22 |
| Protection Function | OVP, OCP, OLP, SCP, OTP | Dimension (L*W*H) mm | 80*54*17 |
