FS002A風扇燈電源控制器

在線咨詢全國熱線
13724264502

詳細介紹

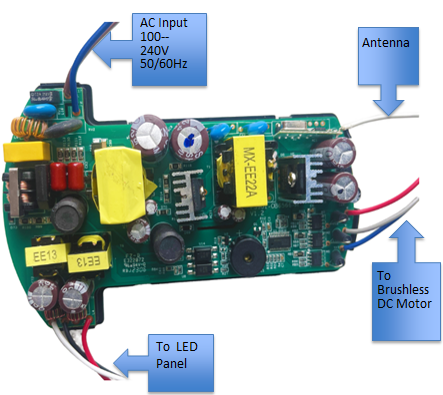

Model	Cloud Connect	FS002A（433+1/2 channel constant current）
1	Input	PSU controller	100--240Vac 50/60Hz
2	Remote Control	Part number	00006-00 Support remote control. The outline can be defined by customers
3	PSU Controller	Part number	00005-00 The label can be printed on the plastic cover according to customer's requirement.
4	Lighting	4.1 Colour Temperature	Stepless colour temperature control
		4.2 Type-86 switch	Brightness 100% with default yellow & white light. Support type-86 switch control
		4.3 Dimming	Brightness range, 10%-100% .Support sleeping light.
		4.4 LED Driver power rated	2 non-isolated constant current outputs，one channel output 25W Max. Two channel outputs 50W Max.
5	Fan	5.1 Type-86 switch	Default fan speed is in gear 3. The gear of fan running speed is remembered when AC power is off.
		5.2 Gear / Scale	Scale 1-2-3-4-5-6 Operation scale is automatic memory
		5.3 Forward and Reversed	Support forward or reversed fan operation. The operation direction is automatic memory.
		5.4 Timer	1H,2H,4H without automatic memory or defined by customers
		5.5 Natural wind	Option
		5.6 Brushless Motor	DC 24V brushless motor, 35W Maximum
6	Communication	6.1 Frequence	SUB-1G, 433MHz / 868MHz
6	Communication	6.2 Distance	10 meters
7	APP	APP	No suppport
8	Outline	PSU controllor outline	PSU controller can be designed according to customer's requirements defined.
9	Safety and EMC	Comply with FCC, UL, CE, CCC standard or other standards
