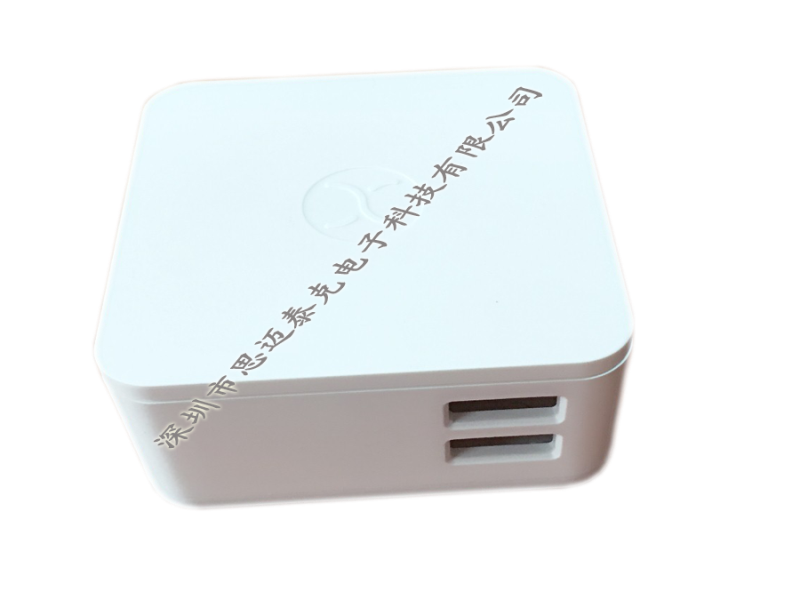

| Product Name:SMP030USB |
| Application range: USB charger |
| Product Features: |
| ? Universal AC Input / Full Range 90--264Vac with folding AC plug |
| ? Single USB output with 5.2V 3.0A Max, total 5.0A Max. |
| ? Protections Mode: OVP, OCP,OTP and SCP |
| ? Light Weight, Small Volume |
| ?High Reliability, MTBF > 100Khrs |
| ? Compliance with Energy level VI |
| ? 2 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | ||
| Input Voltage Range | 90-264Vac | Operating Temperature | 0℃~45℃ |
| Input Frequency | 50/60Hz | Storage Temperature | -20℃~ 85℃ |
| Inrush Current | <50A | Storage Humidity | 5~95% |
| Hold up Time | >10mS | Cooling Mode | Natural Cooling |
| Turn on Delay(s) | <3 | MTBF | ≧100,000Hrs @full load |
| Rated Output Voltage | 5.2V | Surge Voltage | ±1KV |
| Max. Output Current | 5.0A Max. | Insulation Voltage | 3KVac @ Primary v.s. Secondary |
| Output Voltage Tolerance | <±5% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc |
| Ripple and Noise (Vpp) | <100mV | Leakage Current | <250uA |
| Efficiency (%) | >85% (Energy level VI) | Safety Mark & Standards Complicance | UL, FCC, IEC60950, UL60950 |
| Static Loss | <0.1W | EMC & EMI Standards Complicance | FCC Part 15 Class B; EN55032 |
| Protection Function | OVP, OCP, SCP,OTP | Dimension (L*W*H) mm | 60*60*30mm |
