SMP150 12V 10A 15V10A 18V8.33A 20V 7.5A 24V 6.25A

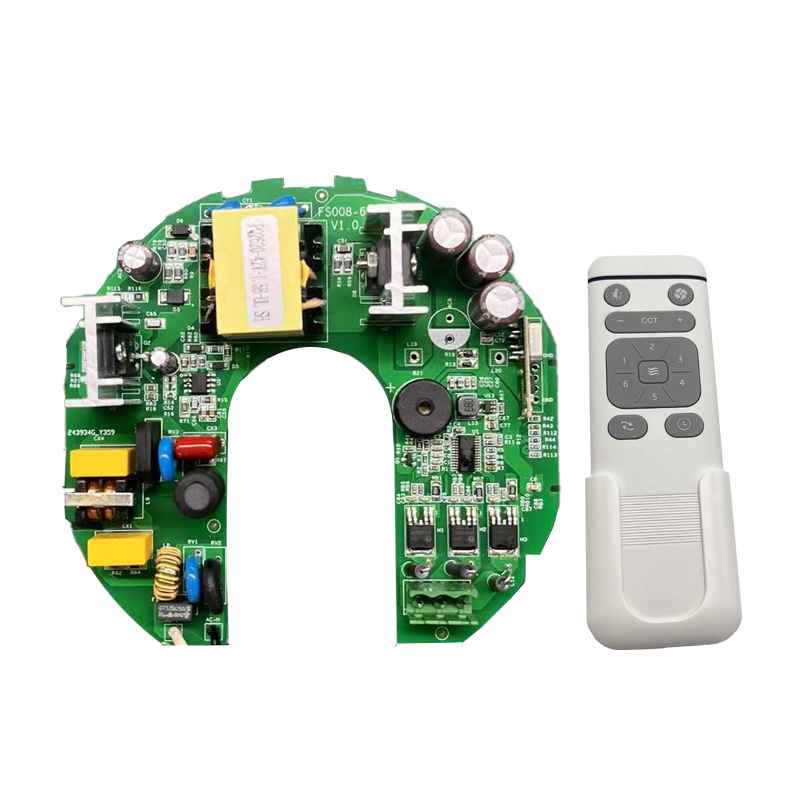

Product Name: SMP150 open frameApplication range: Home appliancesProduct Featur...
| Model | Cloud Connect | FS060 (WiFi+SUB-1G, or SUB-1G,433M） | |
| 1 | Input | PSU controller | 100--240Vac 50/60Hz |
| 2 | Remote Control | P/N | 00008-00 Support remote control. The outline can be defined by customers |
| 3 | PSU Controller | P/N | FS060 The label can be printed on the plastic cover according to customer's requirement. |
| 4 | Lighting | 4.1 Brightness - | Communication protocol in the LED light board. |
| 4.2 Brightness + | Communication protocol in the LED light board. | ||
| 4.3 CCT | Correlated colour temperature,CCT communication protocol in the LED light board | ||
| 4.4 External LED driver | 1 channel relay control or triac control (SCR) | ||
| 5 | Fan | 5.1 Fan Stop | Fan on/off |
| 5.2 Gear / Scale | Scale 1-2-3-4-5-6 Operation scale is automatic memory | ||
| 5.3 Forward and Reversed | Support forward or reversed fan operation. The operation direction is automatic memory. | ||
| 5.4 Natural wind | Support natural wind | ||
| 5.4 Timer | 2H,4H,8H without automatic memory or defined by customers | ||
| 5.5 Brushless Motor | 24 voltage DC motor. Fan diamter 70 inches Maximum. | ||
| 6 | Communication | 6.1 Frequence | WiFi+ SUB-1G, 433MHz / 868MHz |
| 6.2 Distance | 10 meters | ||
| 7 | APP | APP | Option: Tuya ,related APP, or no support |
| 8 | Outline | PSU controllor outline | PSU controller can be designed according to customer's requirements defined. |
| 9 | Safety and EMC | Comply with FCC, UL, CE, CCC standard or other standards |
