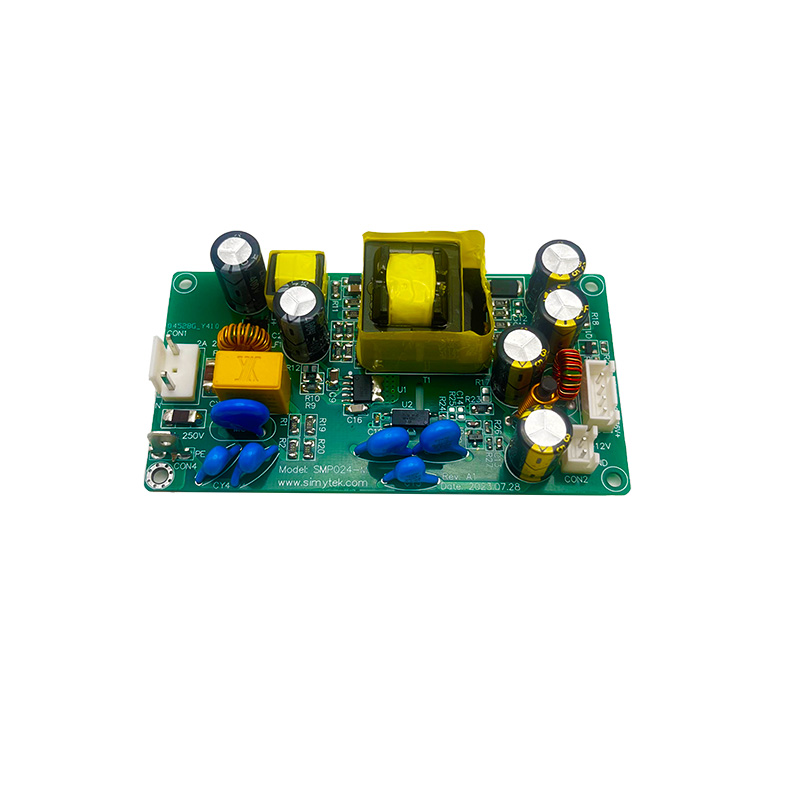

| Product Name:SMP024A-M |
| Application range: Portable or indoor medical equipments |
| Product Features: |
| ? Universal AC Input / Full Range |
| ?24W Constant Voltage CircuitOutput1 12V 1A, Output2 36V 0.35A |
| ? Protections Mode: OVP, OCP and SCP |
| ? Light Weight, Small Volume |
| ? High Reliability, MTBF > 100Khrs |
| ? Compliance with Energy level VI |
| ?3 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | |||
| Input Voltage Range | 90-264Vac | Operating Temperature | -20℃~60℃ | |
| Input Frequency | 50/60Hz | Storage Temperature | -20℃~ 85℃ | |
| Inrush Current | <50A | Storage Humidity | 5~95% | |
| Hold up Time | >10mS | Cooling Mode | Natural Cooling | |
| Turn on Delay(s) | <3 | MTBF | ≧100,000Hrs @full load | |
| Rated Output Voltage | 12V1A, 36V 0.35A | Surge Voltage | ±2KV | |
| Max. Output Current | 1A Max. | Insulation Voltage | 4KVac @ Primary v.s. Secondary | |
| Output Voltage Tolerance | <±5% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc | |
| Ripple and Noise (Vpp) | <120mV | Leakage Current | <250uA | |
| Efficiency (%) | >85% (Energy level VI) | Safety Mark & Standards Complicance | UL60601-1,IEC60601-1,EN60601-1,CSA22.2 No.601-M90 | |
| Static Loss | <0.1W | EMC & EMI Standards Complicance | EN55011 Level B IEC60601-1-2 | |
| Protection Function | OVP, OCP, SCP | Dimension (L*W*H) mm | 95*50*18mm | |
