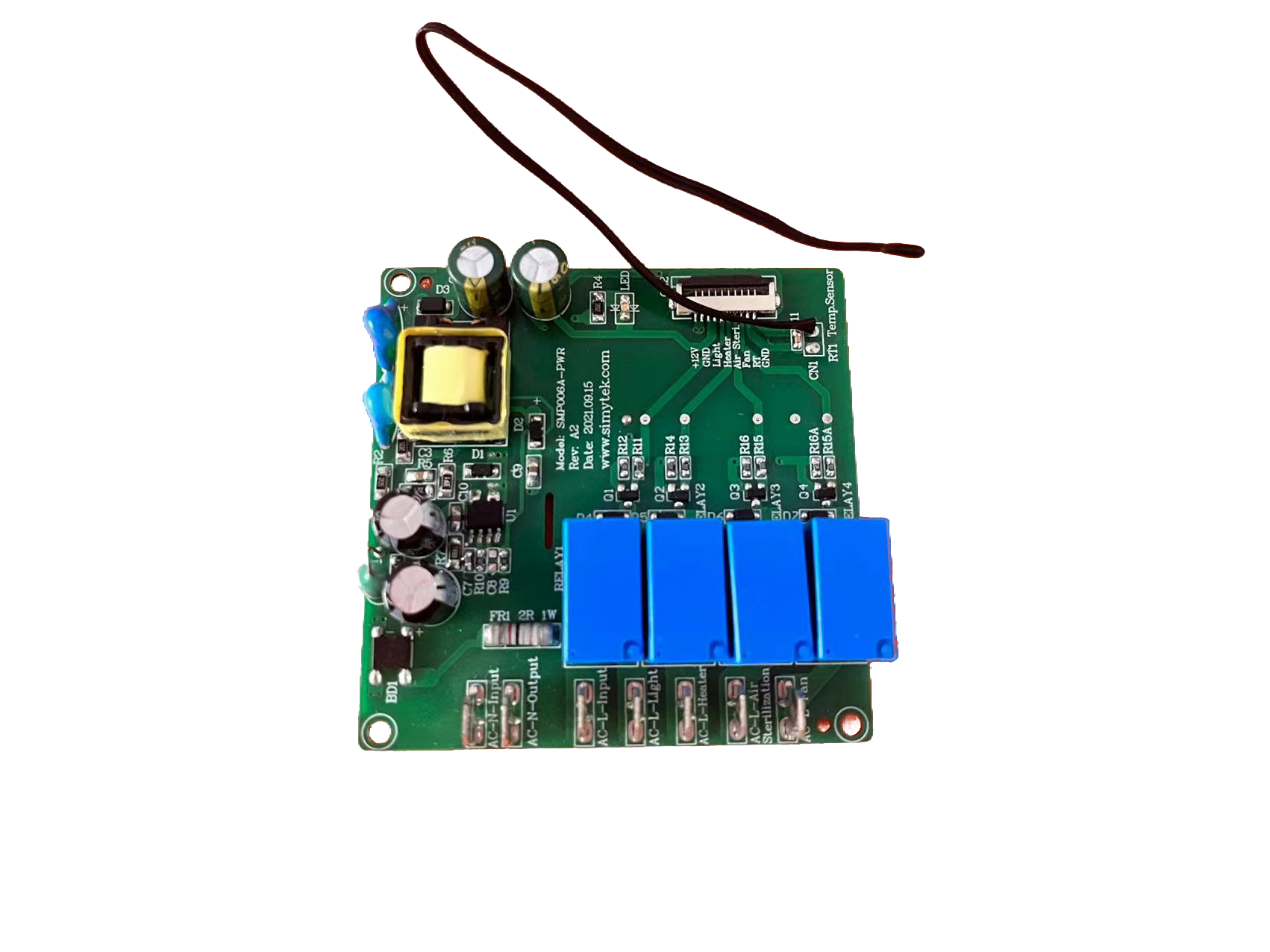

| Product Name: SMP006A-PWR |
| Application range: Household appliances |
| Product Features: |
| ? Universal AC Input / Full Range 90--264Vac 50/60Hz |
| ? Output1 12Vdc 0.5A for MCU controller board |
| ? Output2 100--240Vac 10A for lighting panel |
| ? Output3 100--240Vac 10A for 1000W heater |
| ? Output4 100--240Vac 10A for air sterilization device |
| ? Output5 100--240Vac 10A for air exchange fan |
| ? RT1 for indoor temperature sensor |
| ? LED screen for ambient temperature or timing indicator |
| ? 2 Years Warranty |
| Electrical Parameter | Environment & Safety Specification | ||
| Input Voltage Range | 90-264Vac | Operating Temperature | -40℃~65℃ |
| Input Frequency | 50/60Hz | Storage Temperature | -40℃~ 70℃ |
| Turn on Delay(s) | <3 | Storage Humidity | 5~95% |
| Rated Output Voltage / Current | Output1: 12Vdc/0.5A, Output2/3: 100--240Vac 10A, Output4/5: 100--240Vac 10A | Cooling Mode | Natural Cooling |
| Output Voltage Tolerance | <±5% | MTBF | ≧100,000Hrs @25°C (Telcordia SR-332) |
| Dynamic Overshoot | <±5% | Surge Voltage | ±1kV; |
| Ripple and Noise (Vpp) | <120mV | Insulation Voltage | 3KVac @ Primary v.s. Secondary |
| Efficiency (%) | >83% | Insulation Resistance | >10Mohm @ Primary v.s. Secondary @ 500Vdc |
| Rise Time | <200mS | Safety Mark & Standards Complicance | EN60950, CB, CE, TUV, UL&cUL |
| Hold up Time | >10mS | EMC & EMI Standards Complicance | FCC Part 15 Class B; CISPR 22 |
| Protection Function | OVP, OCP, OLP, SCP, OTP | Dimension (L*W*H) mm | 72*70*16 |
