5A 3A USB

在線咨詢 全國熱線
13724264502
詳細介紹

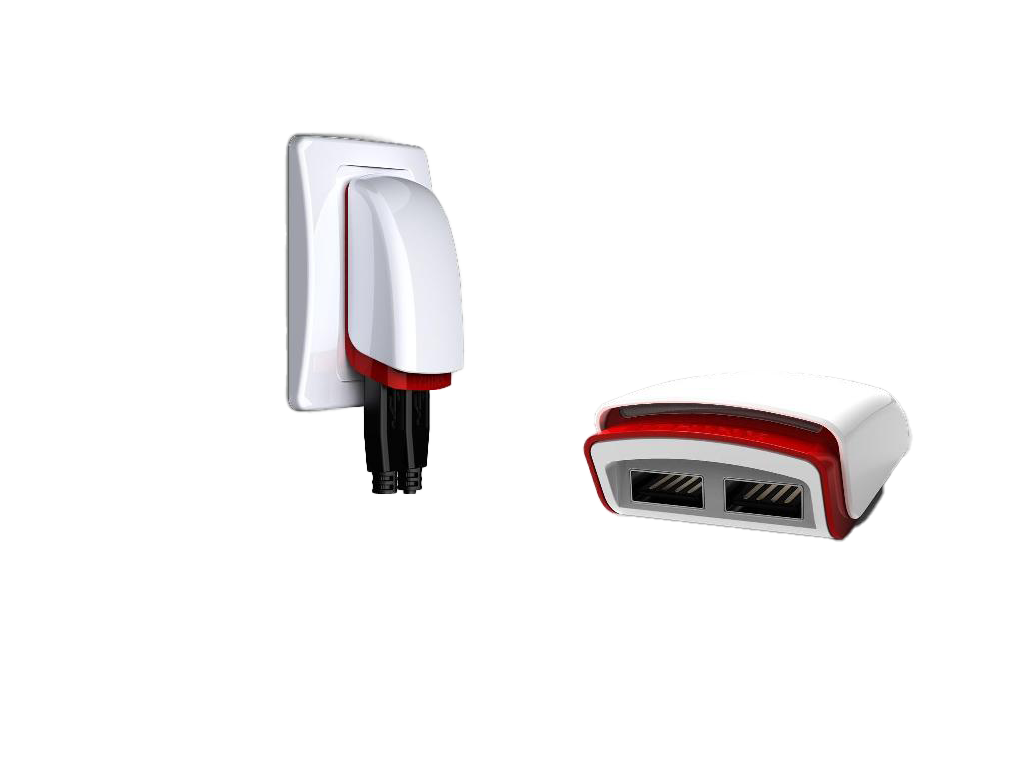

Product  Name:SMP015
Application  range: USB charger
Product  Features:
? Universal AC Input / Full  Range  Input with folding AC plug
?   Double USB output, total 5V 3.0A
? Protections Mode: OVP, OCP,OTP and  SCP
? Light Weight, Small Volume
?High Reliability, MTBF >  100Khrs
? Compliance with Energy level VI
? 2 Years Warranty
Electrical  ParameterEnvironment &  Safety Specification
Input  Voltage Range90-264Vac Operating Temperature0℃~45℃
Input  Frequency50/60HzStorage Temperature-20℃~ 85℃
Inrush  Current<50AStorage Humidity5~95%
Hold up  Time>10mSCooling ModeNatural Cooling
Turn on  Delay(s)<3MTBF≧100,000Hrs @full load
Rated  Output Voltage5.0VSurge Voltage±1KV
Max.  Output Current3.0A Max.Insulation Voltage3KVac @ Primary v.s. Secondary
Output  Voltage Tolerance<±5%Insulation Resistance>10Mohm @ Primary v.s.  Secondary @ 500Vdc
Ripple  and Noise (Vpp)<100mVLeakage Current<250uA
Efficiency  (%)>75% (Energy level VI)Safety Mark & Standards  ComplicanceUL, FCC, IEC60950, UL60950
Static  Loss<0.1WEMC & EMI Standards  ComplicanceFCC Part 15 Class B; EN55032
Protection  FunctionOVP, OCP, SCP,OTPDimension (L*W*H) mm55*39*22mm
