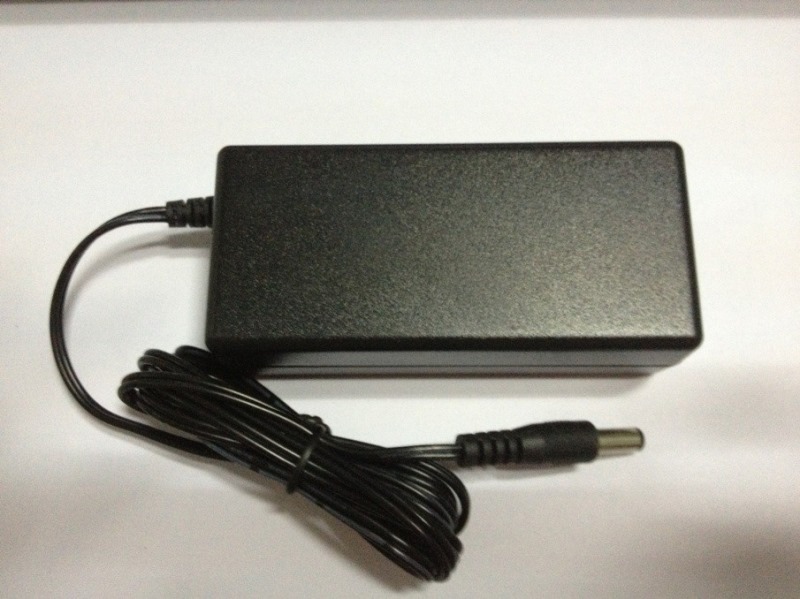

Medical Power 45W

在線咨詢全國(guó)熱線
13724264502

詳細(xì)介紹

Product Name:SMP045M	Model List:
Application range: Portable or indoor medical equipments	SMP045M050600 5V 5.0A
Product Features:	SMP045M120350 12V 3.5A
? Universal AC Input / Full Range	SMP045M150300 15V 3.0A
? 45W Constant Voltage Circuit	SMP045M1800250 18V 2.5A
? Protections Mode: OVP, OCP and SCP	SMP045M200225 20V 2.25A
? Light Weight, Small Volume	SMP045M2400188 24V 1.88A
? High Reliability, MTBF > 100Khrs	SMP045M4800093 48V 0.93A
? Compliance with Energy level VI
? 3 Years Warranty

Electrical Parameter		Environment & Safety Specification
Input Voltage Range	90-264Vac	Operating Temperature	0℃~45℃
Input Frequency	50/60Hz	Storage Temperature	-20℃~ 85℃
Inrush Current	<50A	Storage Humidity	5~95%
Hold up Time	>10mS	Cooling Mode	Natural Cooling
Turn on Delay(s)	<3	MTBF	≧100,000Hrs @full load
Rated Output Voltage	48Vdc Max.	Surge Voltage	±2KV
Max. Output Current	5.0A Max.	Insulation Voltage	4KVac @ Primary v.s. Secondary
Output Voltage Tolerance	<±5%	Insulation Resistance	>10Mohm @ Primary v.s. Secondary @ 500Vdc
Ripple and Noise (Vpp)	<120mV	Leakage Current	<250uA
Efficiency (%)	>88% (Energy level VI)	Safety Mark & Standards Complicance	UL60601-1,IEC60601-1,EN60601-1,CSA22.2 No.601-M90
Static Loss	<0.1W	EMC & EMI Standards Complicance	EN55011 Level B IEC60601-1-2
Protection Function	OVP, OCP, SCP	Dimension (LWH) mm	984530mm
