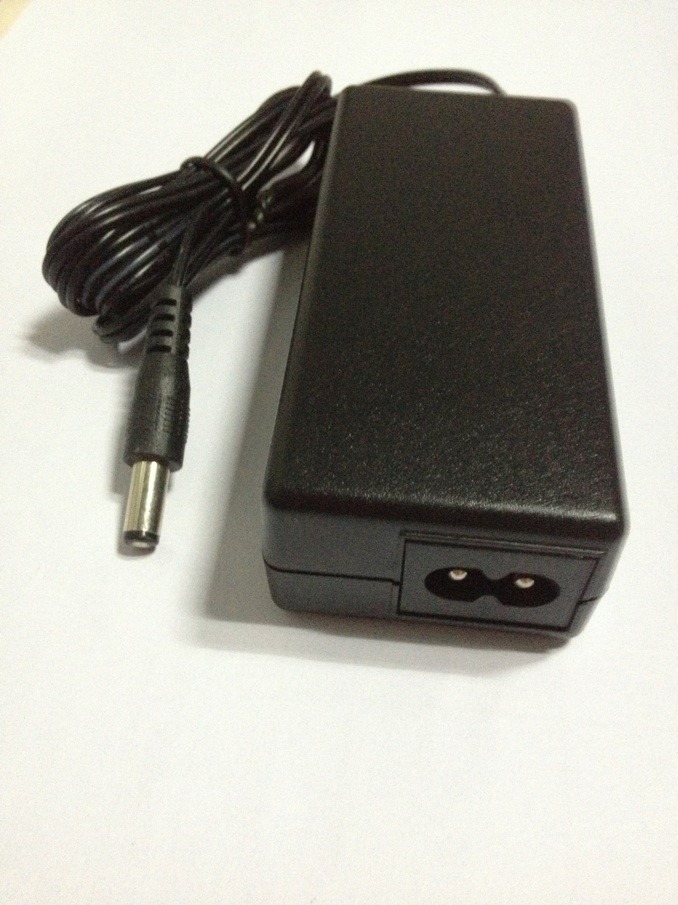

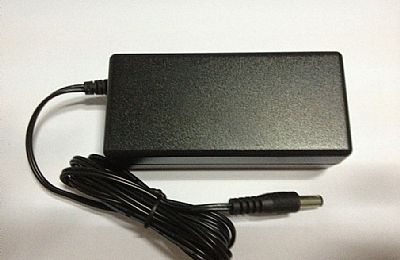

12V2A,12V3A 桌面式適配器

在線咨詢全國(guó)熱線
13724264502

詳細(xì)介紹

產(chǎn)品描述：96×46.6×30MM

12V2A,12V3A 8字尾97*45*28

Desktop power unit
■Features
·Universal AC input/full range
·No load power consumption<0.1W
·Meets energy star level VI
·Full output 4.5~30V safety approved
·Protections:
·short circuit/Overload /Over voltage
·Pass LPS
·Fully enclosed plastic case
·2 PIN INLET OR 3 PIN INLET
·1 year warranty

Specification
Input	Output	General	Environmental	Safety & EMC
● Input voltage	● Output voltage	● Overcurrent protection	● Operating temperature	● Safety mark & standards
100-240VAC	5-30VDC	Short circuit production	-10℃ to +45℃	■UL/cUL UL60950
● Input frequency	● Output current	Short circuit production	● Storage temperature	■CE EN60950
47-63Hz	0-4000mA	80%(typical)/84.6%(CEC V)	-20℃ to +80℃	■GS EN60950
● Input current	● Total output power	● Withstand voltage	● Cooling mode	■BS EN60950
1.0A Max.	36W max.	3000Vac from pri. to sec.	Nature or fan convection	■CB IEC60950
● Inrush current	● Hold up time	● Insulation resistance		■CCC GB4943
50A max.	8ms at 115Vac input	>100Mohm from pri. to sec.		● EMC & standards
● Standby power loss	● Ripple & noise	● MTBF		■EN55022,GB9254
0.3W max.	2% peak-peak max.	20,000-100,000 hours min.		■IEC61000,GB17625
Model List
Model No.	Output electrical characteristics
Model No.	Voltage(VDC)	Current(mADC)	Voltage tolerance	Output power
SMP036Z050YYY	5V	4000 max	±5%	20 W max.
SMP036Z060YYY	6V	4000 max	±5%	24 W max.
SMP036Z075YYY	7.5V	3200 max	±5%	24 W max.
SMP036Z090YYY	9V	3000 max	±5%	27 W max.
SMP036Z095YYY	9.5V	3000 max	±5%	28.5 W max.
SMP036Z100YYY	10V	3000 max	±5%	30 W max.
SMP036Z120YYY	12V	3000 max	±5%	36 W max.
SMP036Z140YYY	14V	2500 max	±5%	35 W max.
SMP036Z150YYY	15V	2000 max	±5%	30 W max.
SMP036Z160YYY	16V	2000 max	±5%	32 W max.
SMP036Z165YYY	16.5V	2000 max	±5%	33 W max.
SMP036Z170YYY	17V	2000 max	±5%	34 W max.
SMP036Z180YYY	18V	2000 max	±5%	36 W max.
SMP036Z190YYY	19V	1800 max	±5%	34.2 W max.
SMP036Z200YYY	20V	1800 max	±5%	36 W max.
SMP036Z240YYY	24V	1500 max	±5%	36 W max.
SMP036Z300YYY	30V	1200 max	±5%	36 W max.
